Spears Manufacturing 867-335SR Series 867-SR PVC Clamp-On Saddle with EPDM

Item Name:

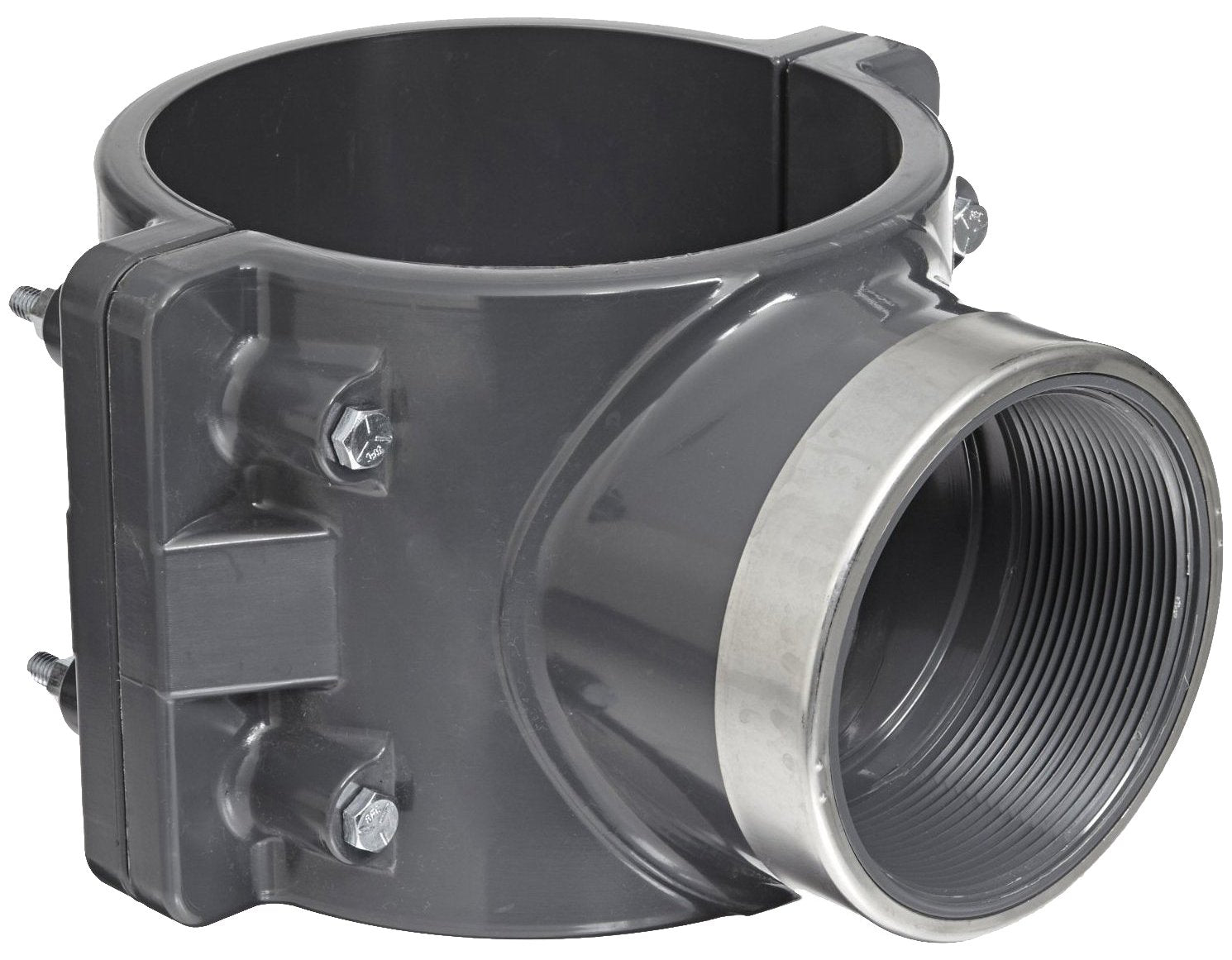

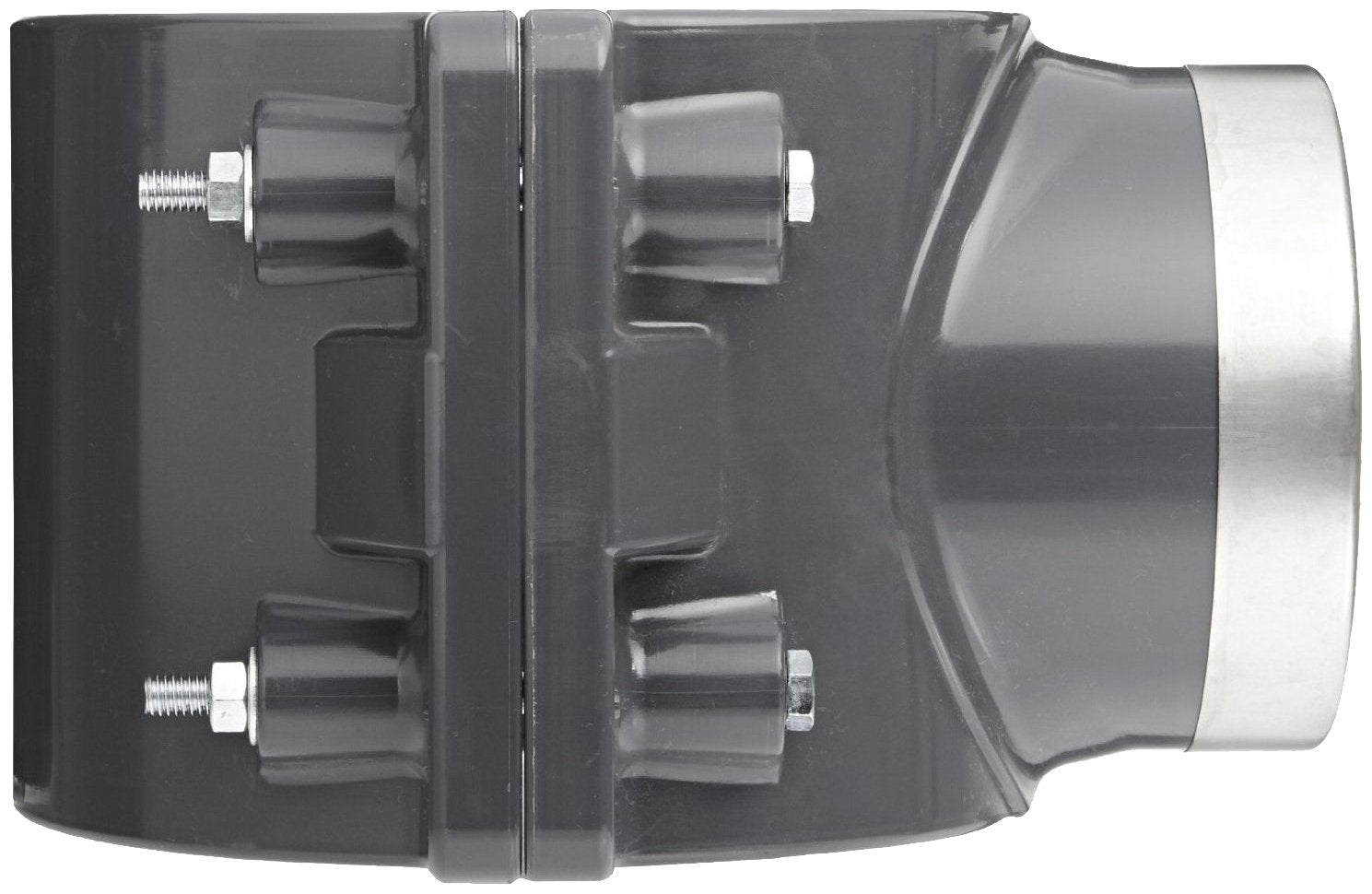

Spears Manufacturing 867-335SR Series 867-SR PVC Clamp-On Saddle with EPDM O-Ring Zink Bolt Stainless Steel Reinforced Outlet Schedule 80 3" IPS OD x 1" NPT Female

Description:
This Spears 867-SR series schedule 80 PVC clamp-on saddle has a reinforced female NPT threaded outlet for connecting to pipes or fittings with male NPT threaded ends, and is suitable for adding a 90-degree branch to a pipe. The stainless steel reinforcement increases the life of the outlet, and the National Pipe Taper (NPT) threads create a tighter seal than straight threads. The saddle is made of gray PVC (polyvinyl chloride) for chemical and corrosion resistance, high strength, and less weight than metal. It has an EPDM (ethylene propylene diene monomer) seal for resistance to oil, water, and some solvents, and is compatible with all types of pipe with an Iron Pipe Size (IPS) outside diameter (OD). The saddle has a maximum pressure rating of 235 pounds per square inch (psi) at up to 4" IPS, 200 psi at 6" IPS, and 150 psi at 8 to 12" IPS. It comes with zinc-plated steel hardware for secure mounting to a pipe. This PVC clamp-on saddle is suitable for adding a 90-degree branch to pipes for chemical processing, industrial plating, chilled water distribution, deionized water lines, and chemical drainage and wastewater treatment systems.Pipe fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing pipe fittings, consider the application, as this will affect material type, shape, size and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).Spears Manufacturing produces thermoplastic fittings and valves for fluid, drain, waste, and vent systems. The company, founded in 1969 and headquartered in Sylmar, CA, meets International Organization for Standardization (ISO) standard 9001. What's in the Box? PVC clamp-on saddle Hardware

Clamp-on saddle for adding a 90-degree branch to a pipe | Female NPT outlet with stainless steel reinforcement for connecting to pipes or fittings with male NPT threaded ends | PVC for strength and resistance to chemicals and corrosion, and an EPDM seal for resistance to oil, water, and some solvents | Maximum pressure rating of 235, 200, or 150 psi | Zinc-plated steel hardware included for secure mounting to a pipe
