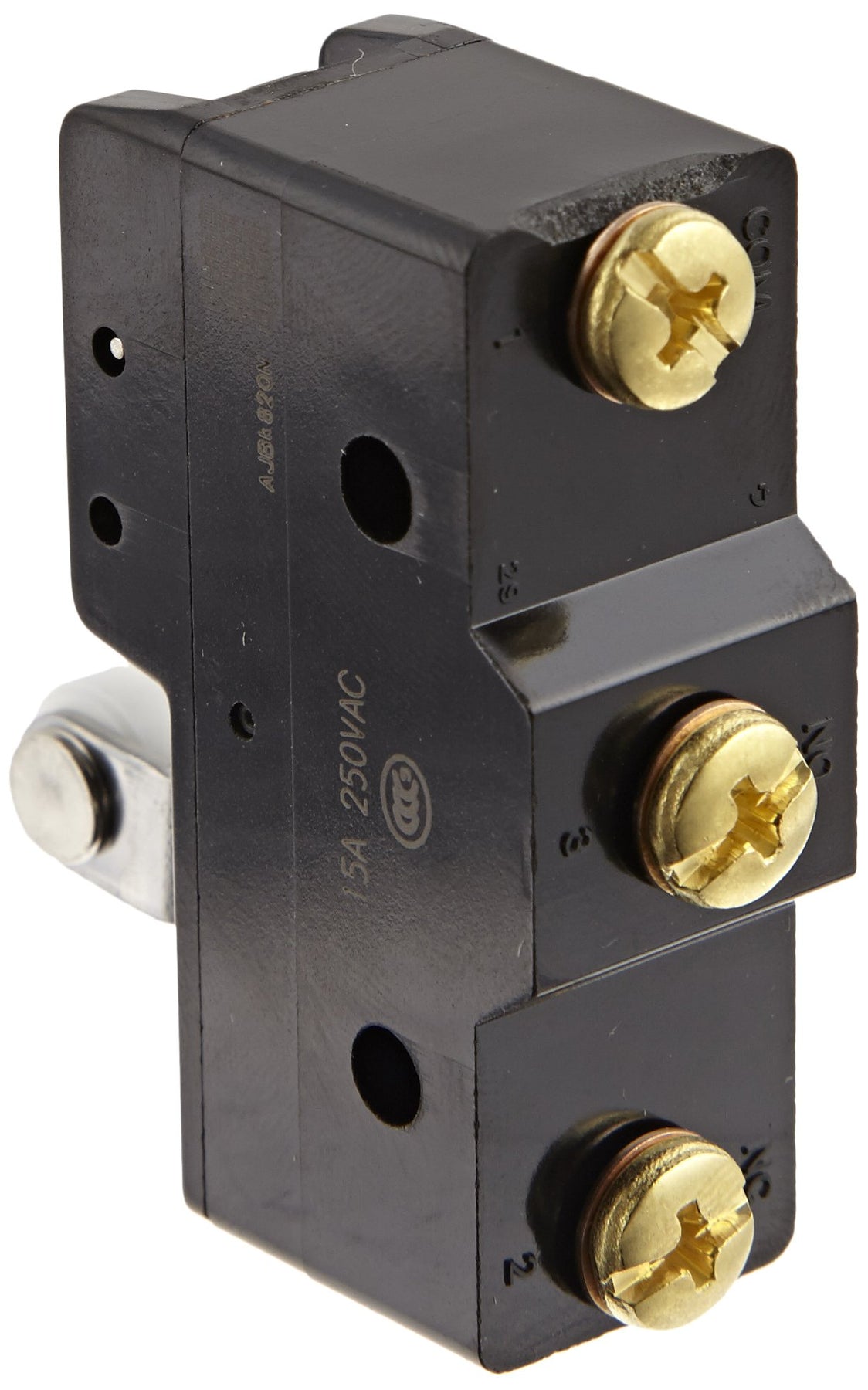

Omron Z-15GW22-B General Purpose Basic Switch Short Hinge Roller Lever

Item Name:
Omron Z-15GW22-B General Purpose Basic Switch Short Hinge Roller Lever Screw Terminal 0.5mm Contact Gap 15A Rated Current

Description:
Omron Z-Series General Purpose Snap switch having 1 NO - 1 NC contacts performs switching operation by 1.57 N force with the input voltage as well as current rating of 125 - 250 VAC and 15 A respectively. Brand Name|Omron#MFR Part Number|Z15GW22B#UPC|36854266638#UNSPSC|39122243#Item|Snap Switch#Type|General Purpose, Standard#Voltage Rating|125 - 250 VAC#Amperage Rating|15 A#Operating Force|1.57 N#Release Force|0.41 N#Contact Configuration|1 NO - 1 NC#Actuator Type|Short Hinge Roller Lever#Contact Form|SPDT#Travel|2.4 mm Over Travel, 0.5 mm Movement Differential#Terminal Type|Screw#Electrical Connection|Wire#Mounting Type|Side#Body Material|Silver Contact, Stainless Steel Plunger#Temperature Range|-25 to 80 deg C#Enclosure Type|IP00#Dimensions|49.2 mm Length X 17.45 mm Width#Standard/Approvals|UL Listed, CE Certified, CSA Certified#Application|Industry Including Lifts, Garages, Production Lines, Machine Tools, Automotive, Security, Domestic Goods and Vending Machines

Best selling basic switch boasting high precision and wide variety | A large switching capacity of 15A with high repeat accuracy. | A wide range of variations in contact form for your selection: basic, split-contact, maintained-contact, and adjustable contact gap types. | A series of standard models for micro loads is available.l | A series of molded terminal-type models incorporating safety terminal protective cover is available.
