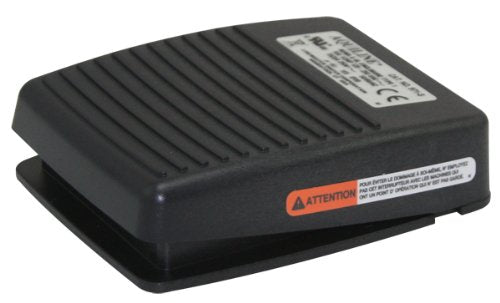

Linemaster 971-S Aquiline Foot Switch Electrical Plastic Single Pedal

Item Name:
Linemaster 971-S Aquiline Foot Switch Electrical Plastic Single Pedal Momentary Single Stage No Guard Dark Gray

Description:
This Linemaster 971-S Aquiline foot switch has a single pedal and is suitable for single-stage, momentary control of the on/off cycle for an electrical device. The polymer plastic base and cover are resistant to corrosion and weather, and the non-skid base and raised ribs on the cover provide positive traction during operation. The foot switch has 125-250 VAC, 15 amp input with a single-pole double-throw (SPDT) switch and supplies power to a device as long as the foot switch is held down. The cover has a built-in cord grip for relieving the strain on the power cord. This momentary foot switch is Underwriter Laboratories (UL) Recognized and displays the CE mark, and is suitable for use in controlling the on/off cycle for an electrical device, such as a single-stage motor. SpecificationsEnclosurePolymer plastic, 125-250 VAC, 15 amp, 1/2 hp, dark graySwitch typeSPDT, single stageIngress ProtectionIP20Standards metUL Recognized, CEDimensions*1.09 x 3.44 x 4.0 inches (H x W x D)*H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.Linemaster manufactures foot switches for medical and industrial applications. The company, founded in 1952, is headquartered in Woodstock, CT.

Momentary foot switch for controlling the on/off cycle of an electrical device | Polymer plastic for corrosion and weather resistance | Non-skid base and raised ribs on cover for positive traction during operation | 125-250 VAC, 15 amp input with SPDT circuit for multiple uses | UL Recognized and displays the CE mark
