Item Name:
Dayton 6K402 Motor 1/12 HP General - 6K402
Description:

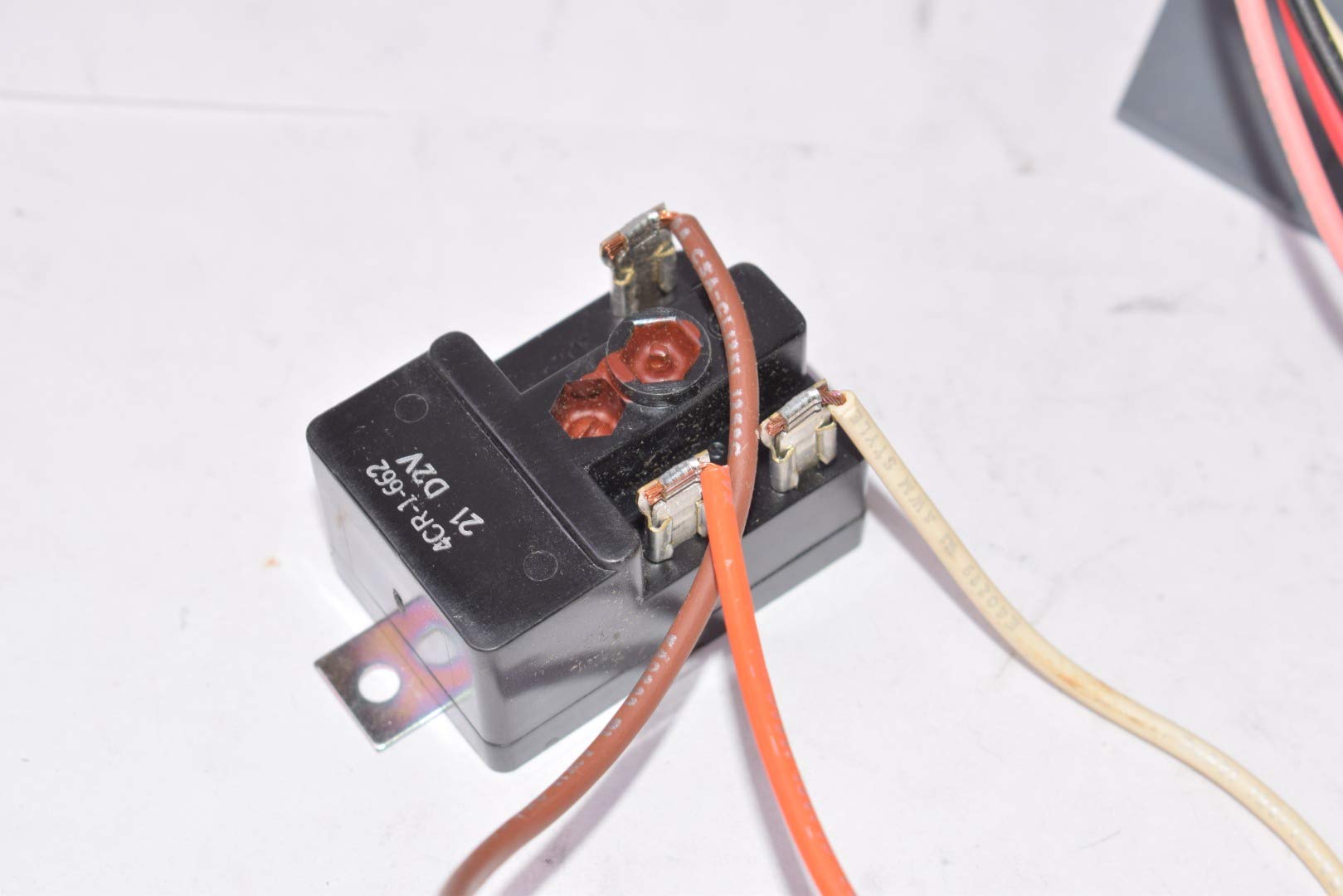

Split-Phase Open Dripproof Base- and Cradle-Mount Motors Max. ambient: 40°C Rotation: CW/CCW Insulation: Class BOpen dripproof motors are for use in clean, dry, and nonhazardous applications including fans, blowers, pumps, printing equipment, and other business machines. NEMA 42 frame is supplied with a relay instead of a centrifugal switch; relay mounting clip is included.UL Recognized and CSA Certified.
Item: General Purpose Motor
Motor Application: General Application
Motor Design: Split-Phase
Motor Enclosure Design: Open Dripproof
HP: 1/12
Nameplate RPM: 1725
Frame: 42
Voltage: 115
Hz: 60
Phase: 1
Full Load Amps: 3.7
No. of Speeds: 1
Motor Mounting Type: Cradle Base
Motor Thermal Protection: None
Ins. Class: F
Motor Service Factor: 1.40
Motor Bearings: Ball
Motor Frame Material: Rolled Steel
Max. Ambient Temp.: 40 Degrees C
Motor Shaft Rotation: CW/CCW
Shaft Dia.: 3/8"
Shaft Length: 1-1/8"
Length Less Shaft: 5-10/16"
Overall Length: 6-7/8"
Motor Shaft Design: Flat
RPM Range: 1701-1800
Standards: UL (E47479), CSA (156060)
Duty: Continuous
Motor Efficiency Group: Standard Efficient
Nominal Efficiency: 32.8%
Manufacturers Warranty Length: 1 yr.
RPM Group: 1701-1800
Item: General Purpose Motor | Motor Application: General Application | Motor Design: Split-Phase | Motor Enclosure Design: Open Dripproof | HP: 1/12
Dayton 6K402 Motor 1/12 HP General - 6K402
Description:
Split-Phase Open Dripproof Base- and Cradle-Mount Motors Max. ambient: 40°C Rotation: CW/CCW Insulation: Class BOpen dripproof motors are for use in clean, dry, and nonhazardous applications including fans, blowers, pumps, printing equipment, and other business machines. NEMA 42 frame is supplied with a relay instead of a centrifugal switch; relay mounting clip is included.UL Recognized and CSA Certified.
Item: General Purpose Motor
Motor Application: General Application
Motor Design: Split-Phase
Motor Enclosure Design: Open Dripproof
HP: 1/12
Nameplate RPM: 1725
Frame: 42
Voltage: 115
Hz: 60
Phase: 1
Full Load Amps: 3.7
No. of Speeds: 1
Motor Mounting Type: Cradle Base
Motor Thermal Protection: None
Ins. Class: F
Motor Service Factor: 1.40
Motor Bearings: Ball
Motor Frame Material: Rolled Steel
Max. Ambient Temp.: 40 Degrees C
Motor Shaft Rotation: CW/CCW
Shaft Dia.: 3/8"
Shaft Length: 1-1/8"
Length Less Shaft: 5-10/16"
Overall Length: 6-7/8"
Motor Shaft Design: Flat
RPM Range: 1701-1800
Standards: UL (E47479), CSA (156060)
Duty: Continuous
Motor Efficiency Group: Standard Efficient
Nominal Efficiency: 32.8%
Manufacturers Warranty Length: 1 yr.
RPM Group: 1701-1800
Item: General Purpose Motor | Motor Application: General Application | Motor Design: Split-Phase | Motor Enclosure Design: Open Dripproof | HP: 1/12
