Chicago Latrobe 150T Series High-Speed Steel Jobber Length Drill Bit

Item Name:
Chicago Latrobe 150T Series High-Speed Steel Jobber Length Drill Bit Set With Metal Case TiN Coated 118 Degree Conventional Point Wire Size 60-piece #60 - #1

Description:

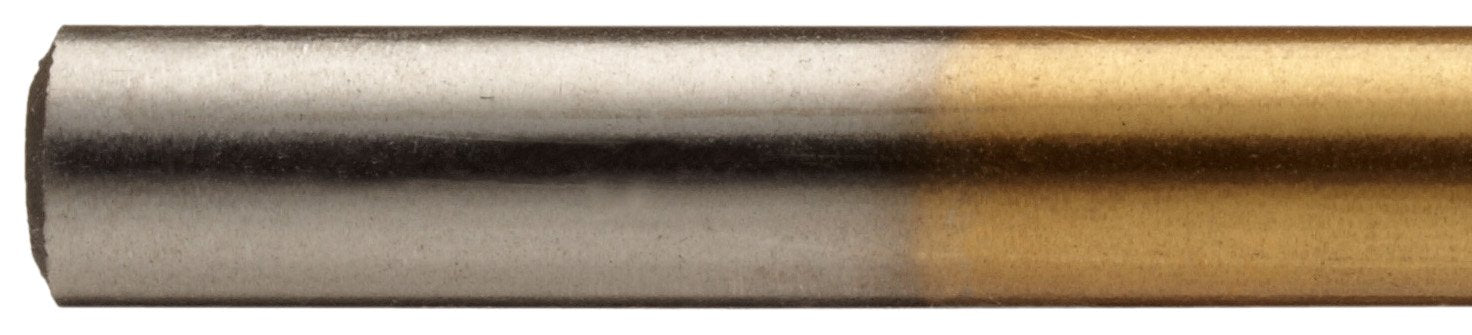

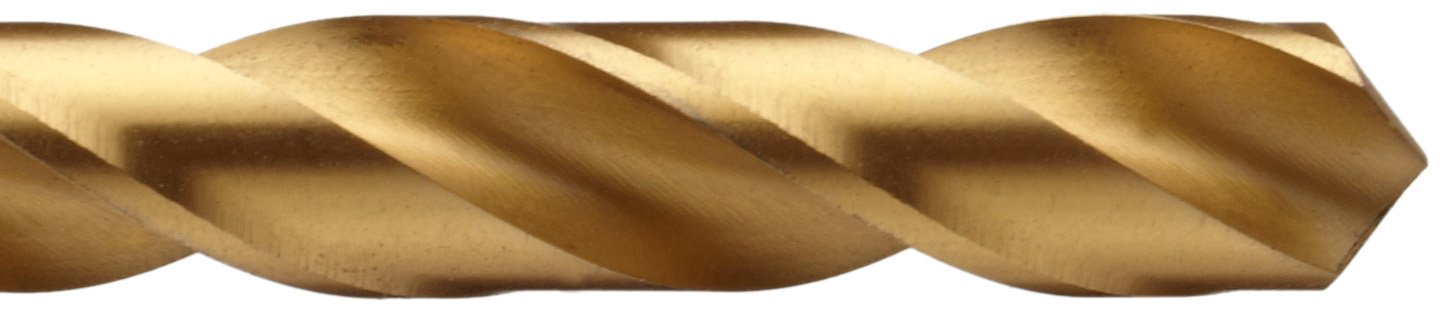

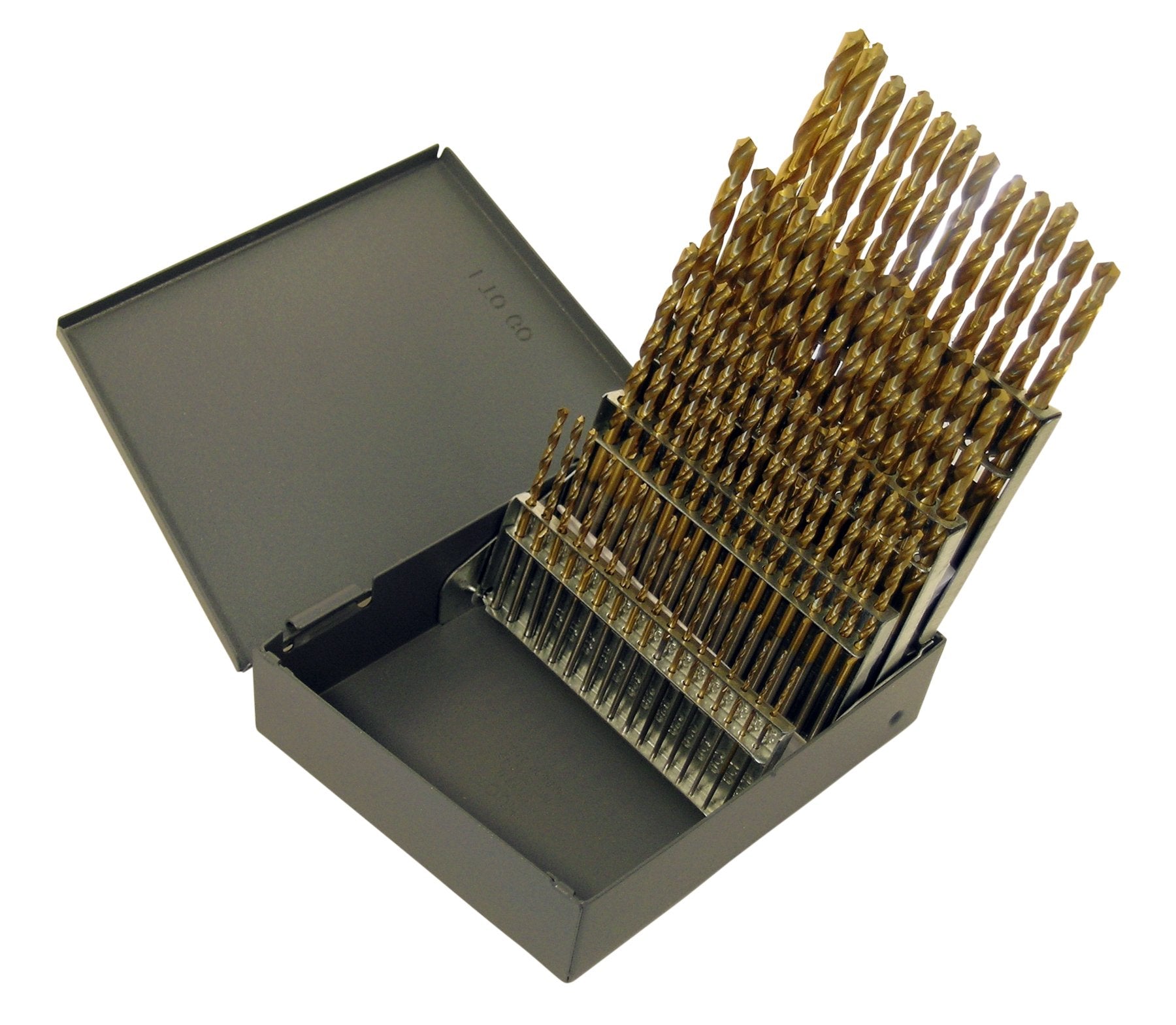

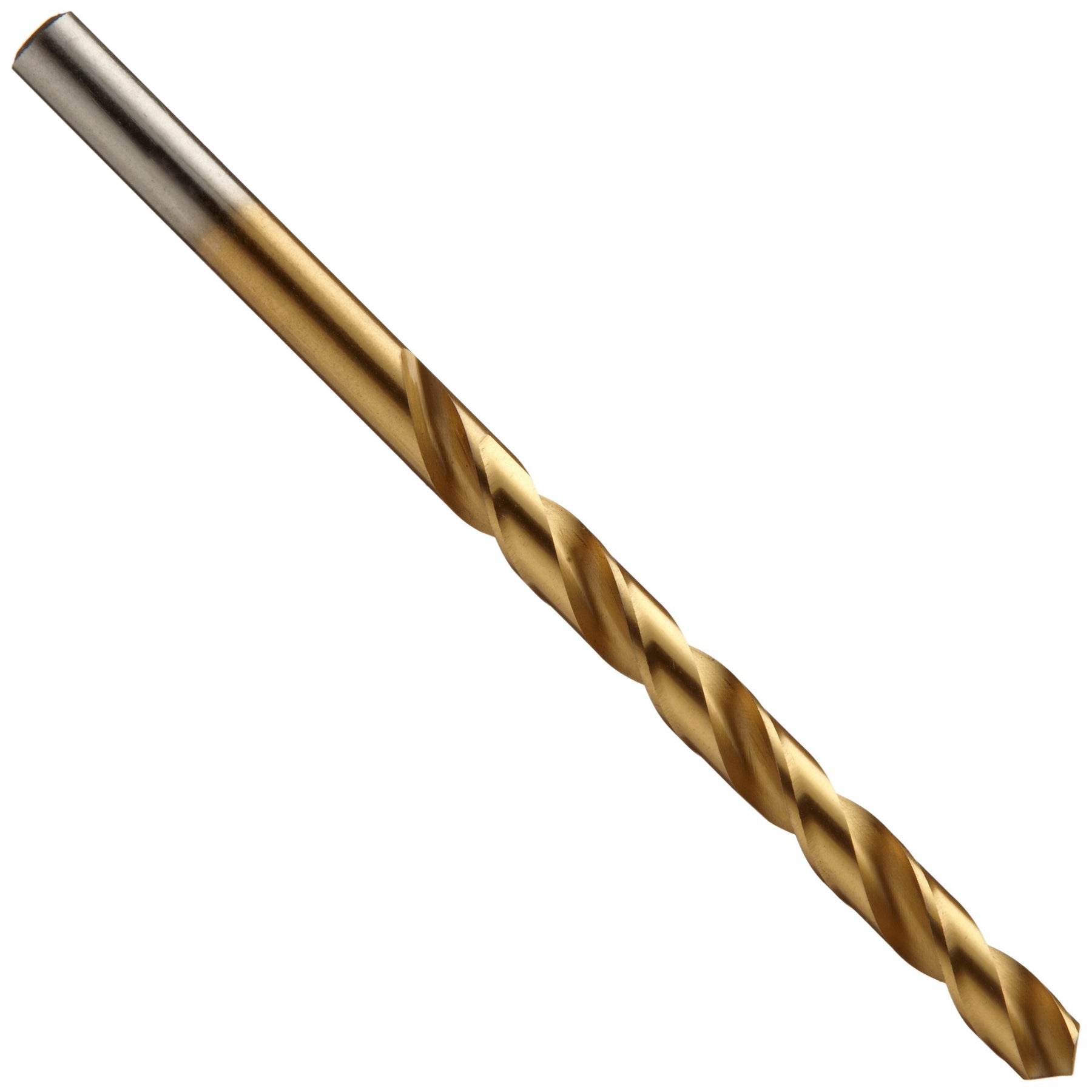

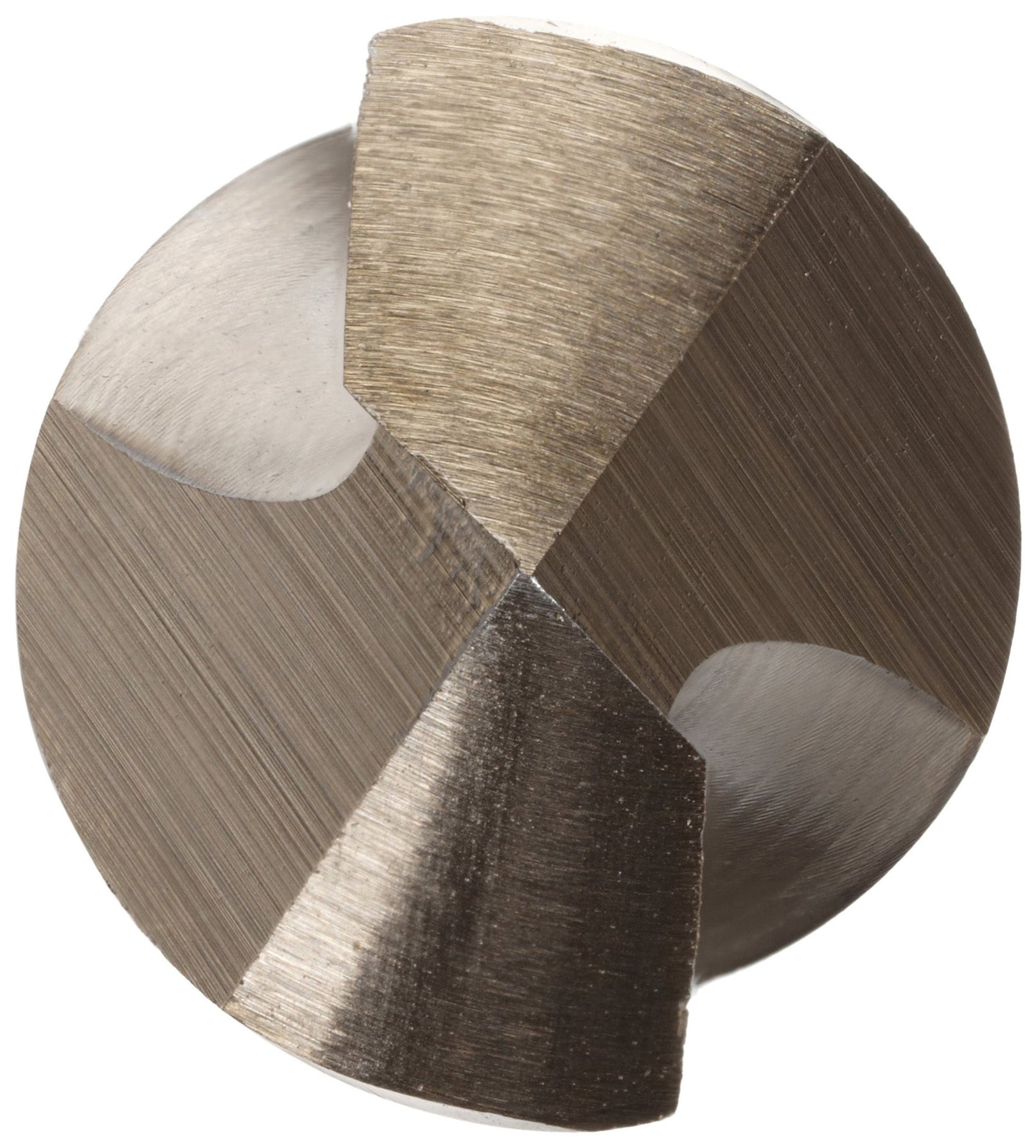

This Chicago-Latrobe 150T series jobber length drill bit set contains 60 high-speed steel drill bits, including one each of wire gauge sizes #60 through #1, with a TiN coating and a 118-degree conventional point for use in high-speed drilling applications on ferrous and nonmetallic materials. High-speed steel (HSS) provides hardness for wear resistance. The titanium nitride (TiN) coating withstands higher drilling speeds, increases drill bit hardness, and extends tool life when compared to uncoated tools. A jobber length drill bit has a versatile midrange drilling depth that is a common choice for general-purpose drilling applications. The round shank accommodates most drill chucks.The set comes in a gray epoxy-coated steel index case with labeled compartments for identification and organization. Case measures 4-3/4 x 3-1/2 x 1-1/4 inches (H x W x D). (H is height, the vertical distance from lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.)Drill bits are cutting tools used to make holes in a range of materials using machines such as handheld portable drills, machining centers, and lathes. Drill bits come in a variety of lengths and types, the most common of which is the twist drill bit. The round, twisted shaft of the twist drill bit typically has two cutting edges and flutes. The helical twist of the flutes brings chips up and away from the cutting edges and allows for coolant to reach the cutting edges. Jobber length twist drill bits, the most common length of twist drill bit, offer a good compromise of length and reach to work with the widest range of materials and applications. Mechanic's length twist drill bits (also called maintenance length) are a little shorter than jobber length and less prone to deflection when drilling. Short length twist drill bits (also called stub or screw-machine length) are the shortest and stiffest twist drill bits, helping to reduce the chance of deflection or breakage when drilling. Reduced shank drill bits (also called Silver and Deming drill bits) have a shank that is smaller in diameter than its shaft, permitting drilling machines with either a 1/2" or 3/4" drill chuck to create large holes. Long length twist drill bits (also called taper length) are a little longer than jobber length, allowing for deeper holes and longer reach. Extra long twist drill bits (also called extension) are longer than long length twist drill bits for greater reach or for drilling deeper holes.Chicago-Latrobe manufactures drill bits and accessories, reamers, countersinks, and blanks. The company, founded in 1890 and headquartered in Clemson, SC, meets International Organization for Standardization (ISO) standard 9001.What’s in the Box? 60 drill bits, one each of wire gauge sizes #60 through #1 Steel case

Set of 60 jobber length drill bits includes one each of wire gauge sizes #60 through #1 | High-speed steel (HSS) provides hardness for wear resistance | Titanium nitride (TiN) coating offers high hardness for increased tool performance and extended tool life compared to an uncoated drill bit on ferrous and nonmetallic materials | 118-degree conventional point for general-purpose drilling applications | Jobber length drill bit has a midrange drilling depth suitable for general-purpose drilling applications | Made in the USA
