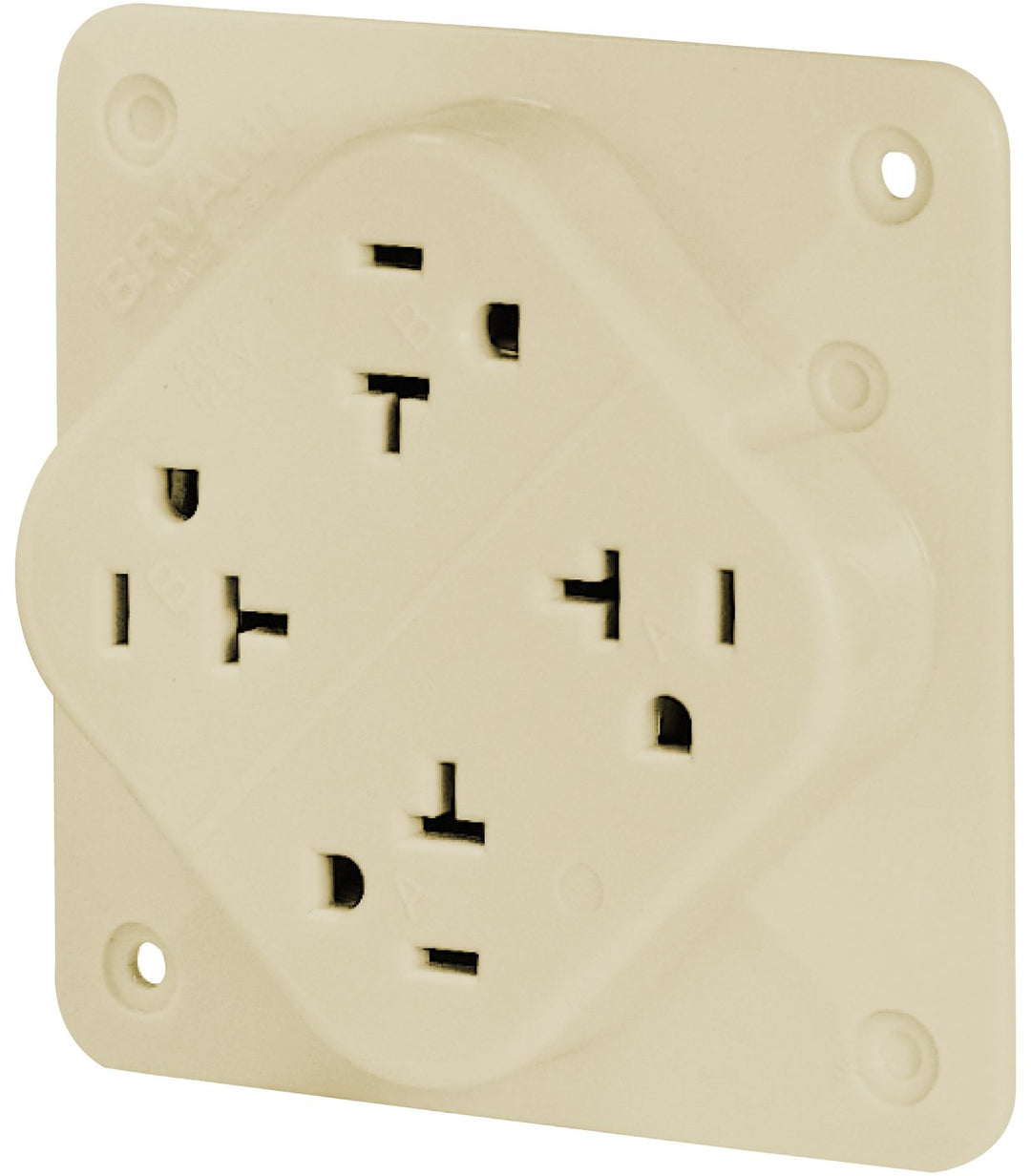

Bryant Electric 21254I 20 Amp 125V 2-Pole 3-Wire Commercial/Industrial Grade

Item Name:
Bryant Electric 21254I 20 Amp 125V 2-Pole 3-Wire Commercial/Industrial Grade Grounding QUADPLEX Receptacle Ivory

Description:
Bryant quadplex receptacles are perfect for retrofit, renovation and new construction use in institutional, industrial and commercial construction installations. Convenience, four outlets in one compact design, replaces existing single or duplex receptacles. Cuts installation and wiring time, receptacle covers/wall plates are eliminated and existing conductors are used, which saves time. Reduces labor and material costs, four outlets in one receptacle eliminates the need to replace a duplex receptacle and a wall box with a two gang box, with two receptacles and a wall plate cover. Flexibility, accessories include adapter plates for flush mounting and special applications, and a portable box with cord grip for temporary power applications. Bryant quadplex receptacles accept up to four angle plugs for those installations requiring that cord and wiring devices lie close to the surface without bending or jamming the cord. Problem solvers, bryant quadplex receptacles are constructed of high impact resistant thermoplastic and are ul listed and csa certified. Bryant 21254I, four outlets internally connected with provision for split circuit wiring (except surge receptacles). receptacle shall be designed for direct mounting to 4-inch square box, octagon box and concrete ring, or flush mounted to 1 and 2 gang boxes or 4-inch square boxes with or without plaster ring.

Accepts up to four straight or angle plugs | Break-off tabs for split circuit wiring, "a" and "b" circuits molded into face for easy indentification | Easily removable knockouts for mounting to octagon concrete ring or box | Heavy-duty, triple-wipe, high performance brass line contacts for excellent retention and conductivity | Large number 8 combination slot/robertson head terminal screws accept up to number 12 solid or stranded wire, strip gauge molded into back
