Item Name:

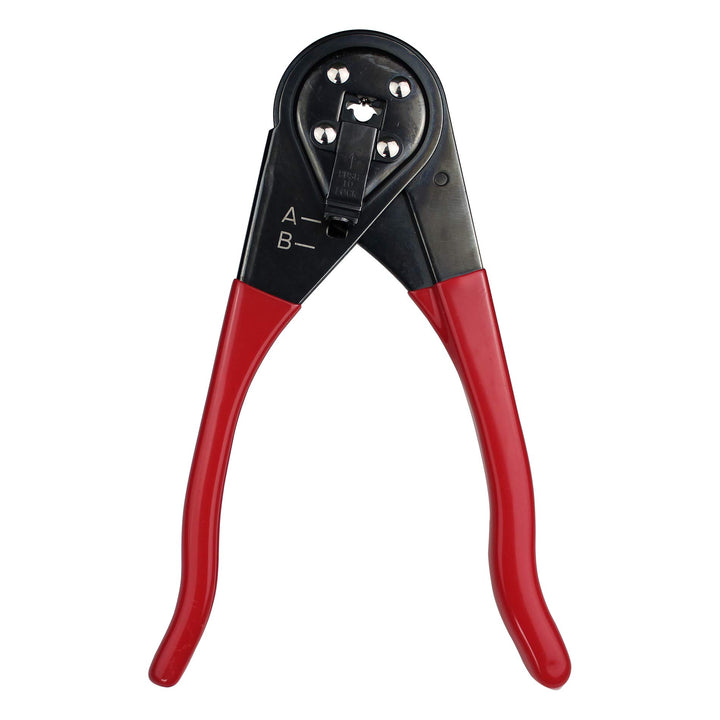

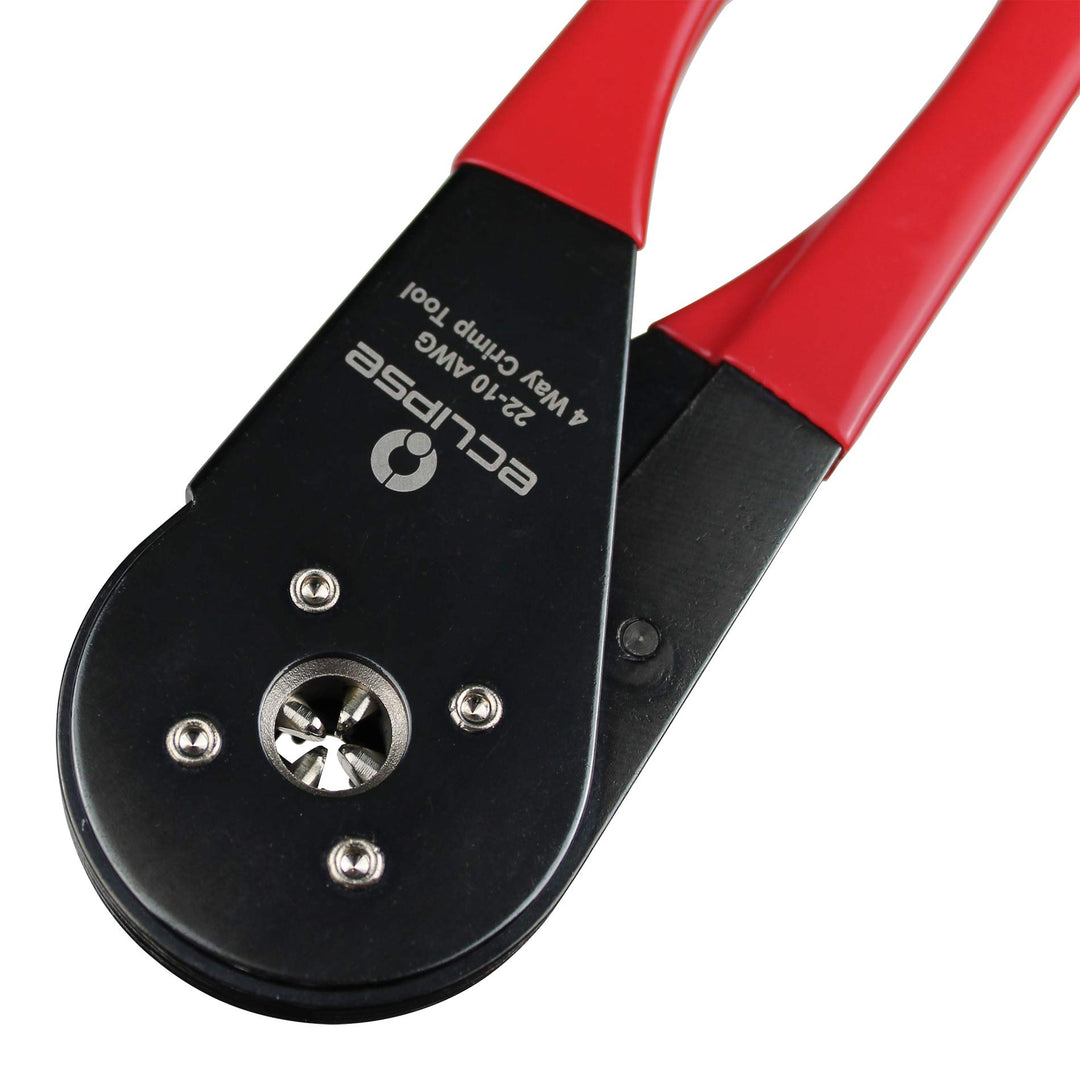

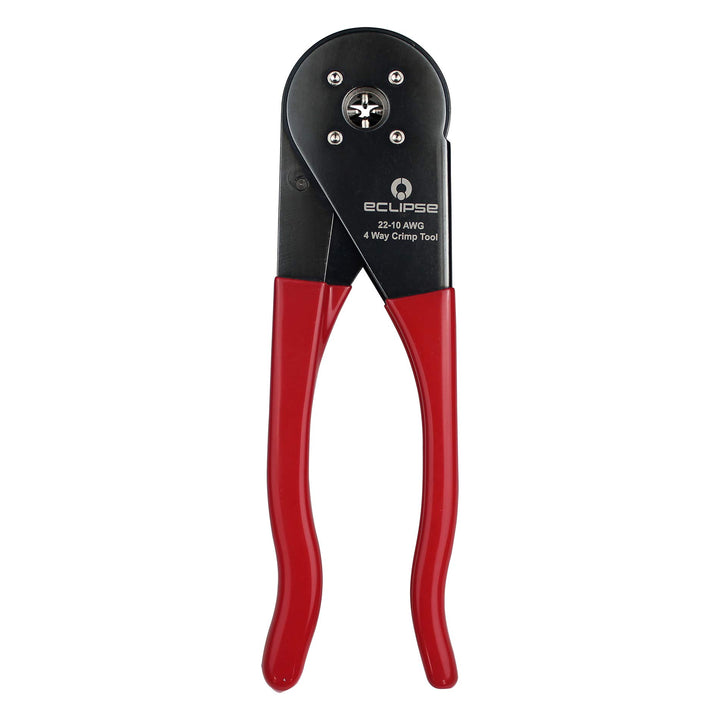

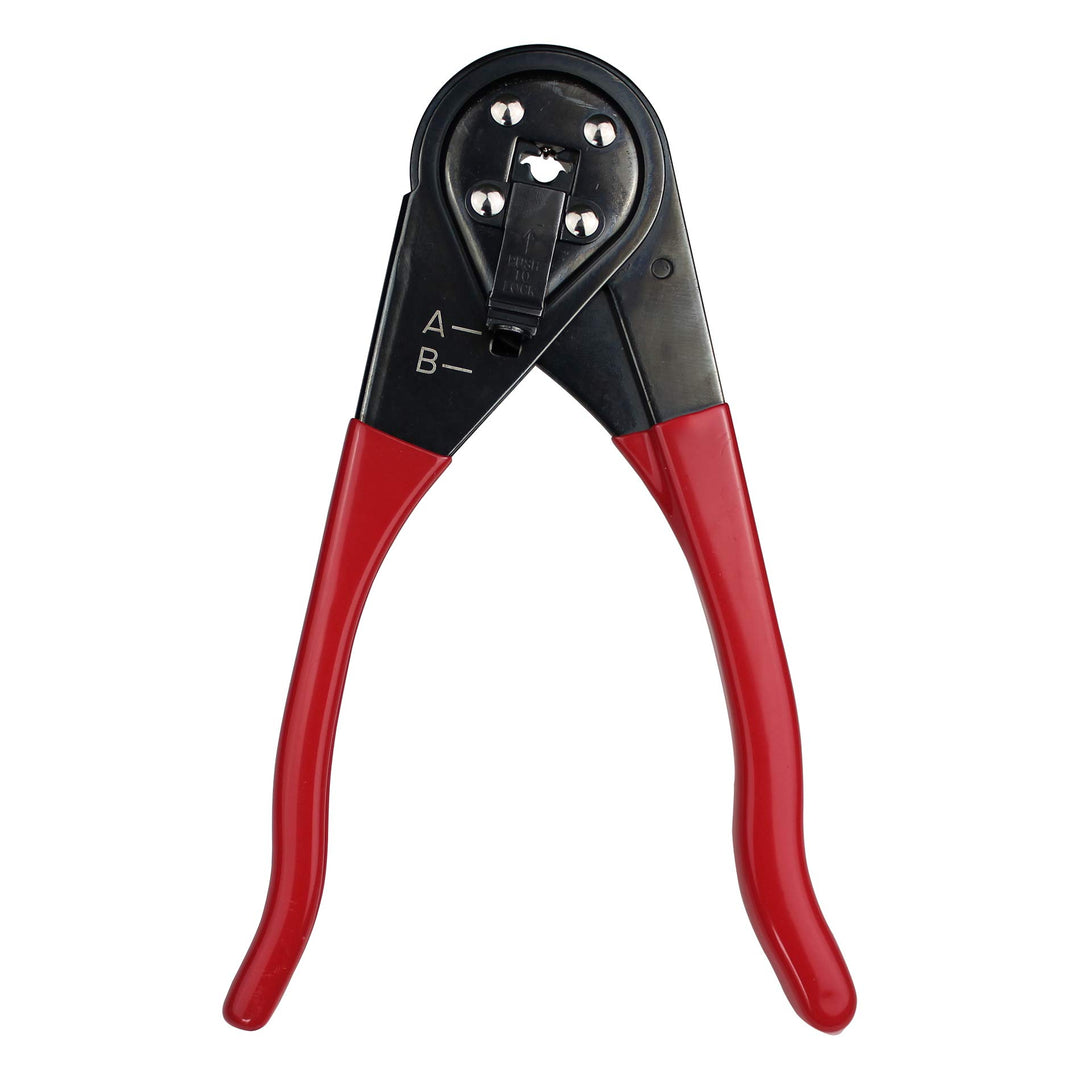

4-Way Crimping Tool (22 to 10 AWG)
Description:
Primary crimping application electrical wire and cable | Overall length 8 in. | For use with industrial standard copper butt splice connectors | Spring-loaded, cam-actuated plungers | Capacity: 22 to 10 AWG
4-Way Crimping Tool (22 to 10 AWG)
Description:

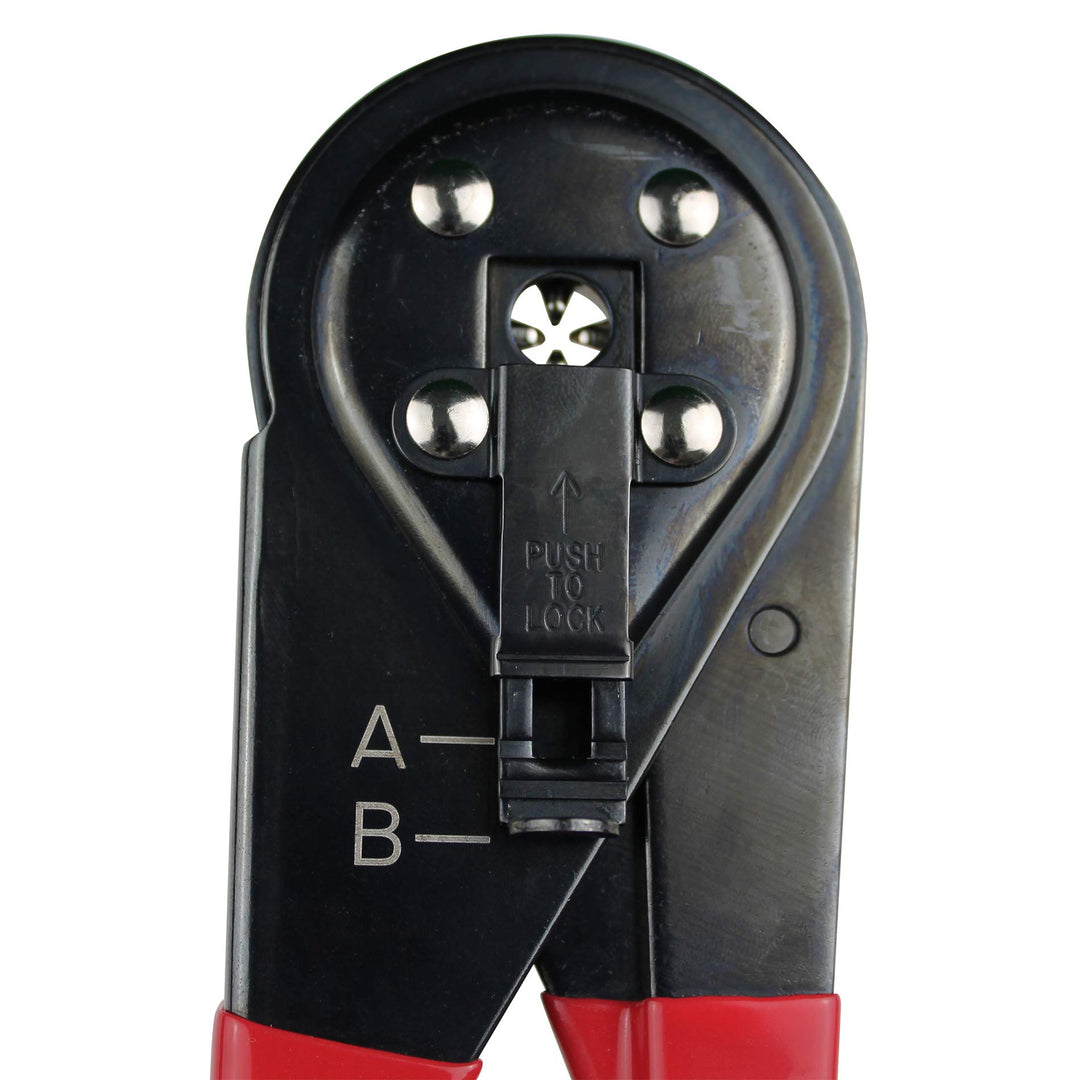

To adjust tool for various fittings set latch to position A for splice caps and lugs. Set latch to position B for larger caps.
To splice wires when using splice caps
1 .Strip wires approximately 3/4 in.
2. Insert wires through cap and twist
3. Insert into tool with latch set at appropriate position
4. Crimp, then cut flush
To terminate wires with lugs
1. Strip wires approximately 5/16 in.
2. Slip lug on wire with latch set to position A
3. Insert into tool with flat side of lug in up position so tongue enters slot in latch and crimp
Primary crimping application electrical wire and cable | Overall length 8 in. | For use with industrial standard copper butt splice connectors | Spring-loaded, cam-actuated plungers | Capacity: 22 to 10 AWG
