Dayton Round Permanent Split Capacitor OEM Specialty Blower Flange: Yes

Item Name:

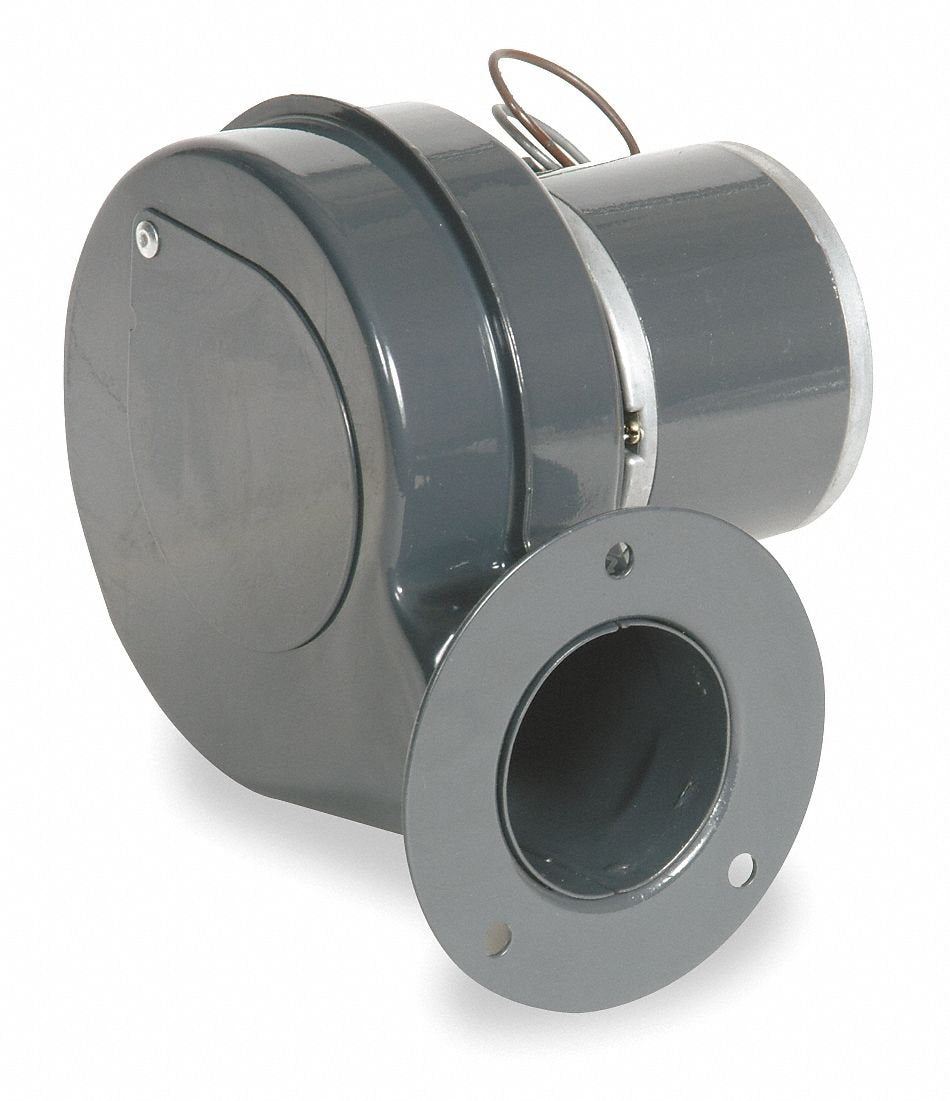

Dayton Round Permanent Split Capacitor OEM Specialty Blower Flange: Yes Wheel Dia: 3" 115VAC

Description:
Direct OEM replacement blower mounts in any position and maintains CFM at higher static pressures. Open motors with cast-aluminum end shields dissipate heat to help reduce downtime and extend service life. Ball bearings. Not for use with speed controllers.

Item: OEM Blower
Blower Outlet Shape: Round
With Flange: Yes
Blower Wheel Diameter: 3"
Blower Wheel Width: 1-7/8"
Blower Item: OEM Specialty Blower
Blower Voltage: 115VAC
Blower Motor Type: Permanent Split Capacitor
Blower Thermal Protection: Auto
Blower Conduit Box: Yes
CFM @ 0.000-In. SP: 50
CFM @ 0.100-In. SP: 48
CFM @ 0.200-In. SP: 44
CFM @ 0.300-In. SP: 39
CFM @ 0.400-In. SP: 32
CFM @ 0.500-In. SP: 18
Hz: 50/60
Phase: 1
Full Load Amps: 0.23
RPM: 3036
Bearing Type: Ball
Motor Enclosure: Open
Motor Insulation: Class B
Lead Length: 13"
Max. Ambient Temp.: 104 Degrees F
Max. Inlet Temp.: 104 Degrees F
Inlet Dia.: 2-3/8"
Outlet Dia.: 2-1/8"
Overall Height: 5-13/16"
Overall Width: 5-1/8"
Overall Depth: 6-7/16"
Wheel Type: Forward Curve
Drive Type: Direct
Mounting Position: All Position
Housing Finish: Enamel
Housing Material: Rolled Steel
Housing Color: Gray
Agency Compliance: UL Recognized US and Canada (E47479), CE
Replaces: 4C440
Includes: Discharge Mounting Flange and Inlet Cover
