Item Name:

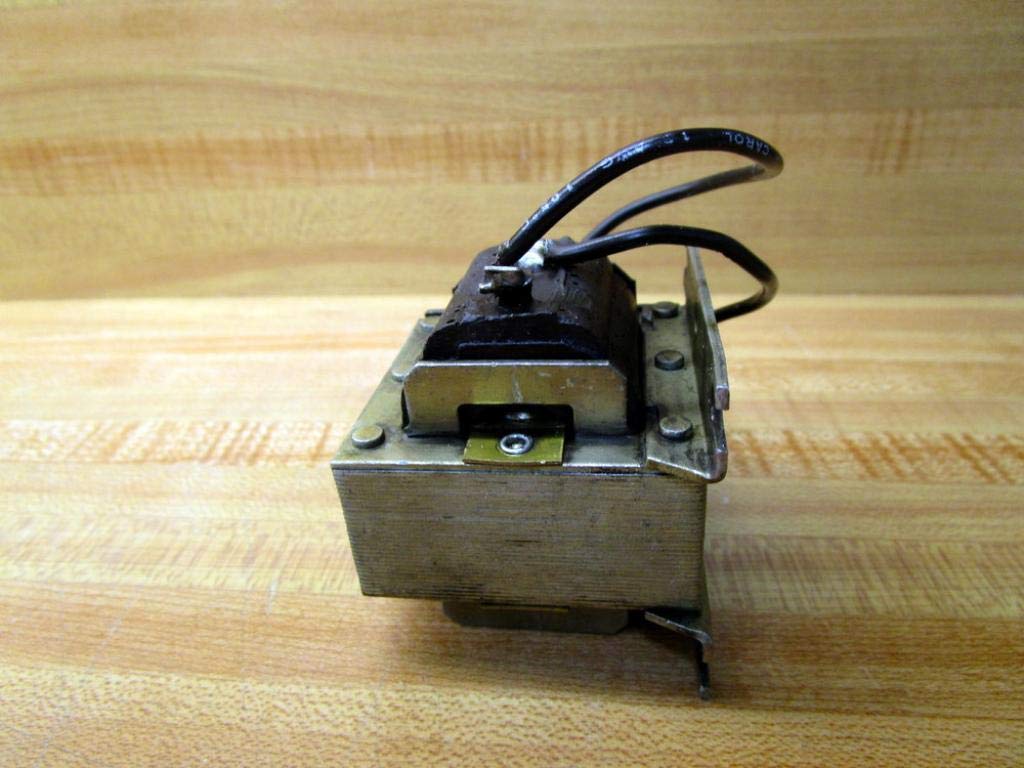

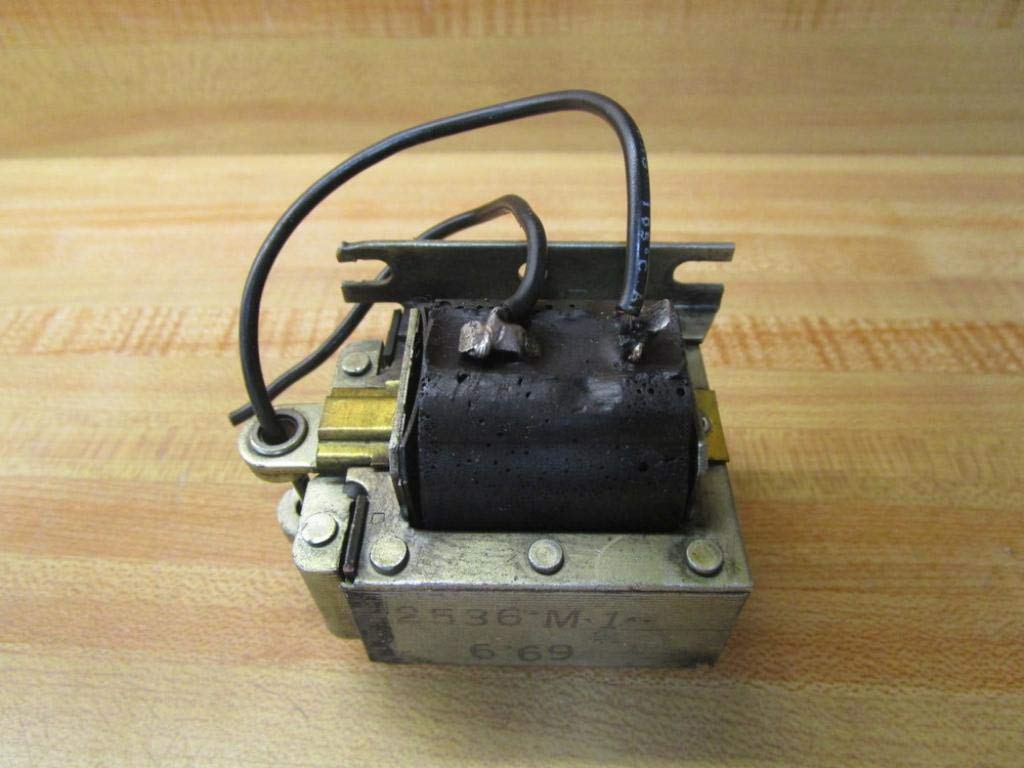

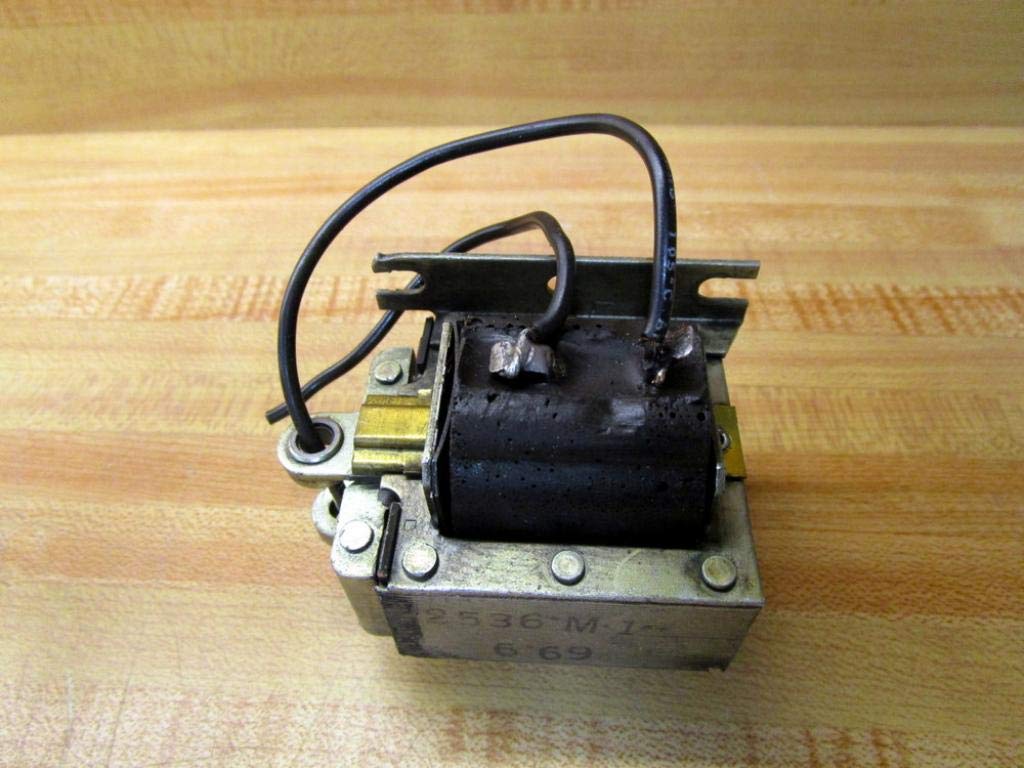

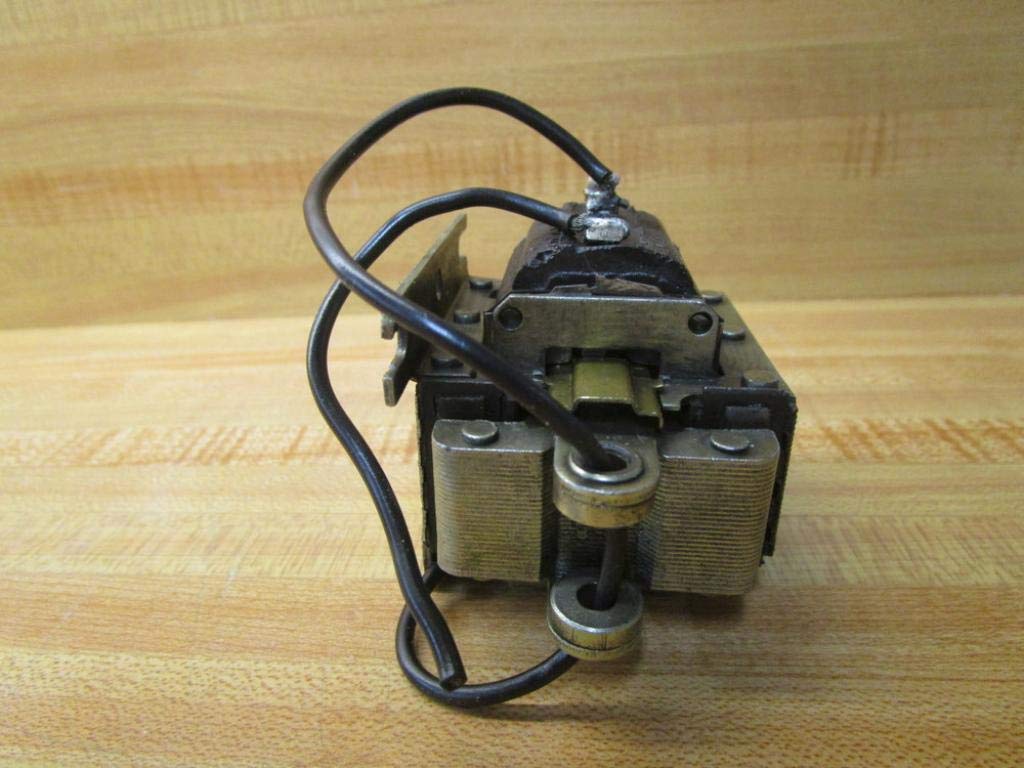

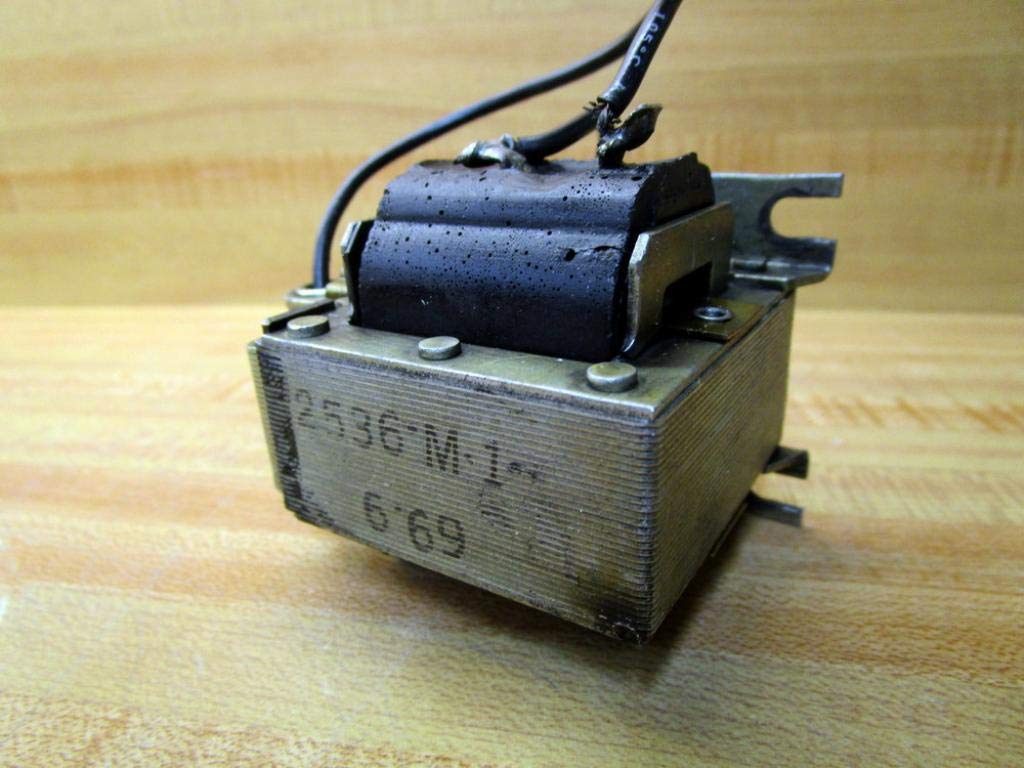

Dormeyer 2536-M-1 Solenoid Laminated 1/8 - 1 In Continuous
Description:
Current @ maximum stroke 6.50 Amps, coil resistance 14.9 Ohms, coil voltage rating @ 60 HZ 120 VAC, seated current 0.48 Amps, seated power 19 Watts, mounting holes on center length 2 inch mounting holes on center width 1 5/8 inch, length 2 1/2 inch, depth 2 1/16 inch, width 2 1/16 inch. Grainger Part 4X241, Dormeyer 2536-M-1, Coil Volts 120VAC
Solenoid Type: Laminated Item: Solenoid Duty Cycle: Continuous Stroke Range: 1/8" to 1" Pull Force Range: 92.8 to 176.0 oz. Coil Volts: 120VAC Seated Amps: 0.48 Seated Watts: 19.0 Terminals: Solder Lug Coil Amps @ Max. Stroke: 6.50 Mounting Holes: 2 x 1-5/8" Gravity Value: 5.92 oz. Pull @ 1/2 In. Stroke: 13.0 oz. Pull @ 1/8 In. Stroke: 65.0 oz. | Pull @ 1/4 In. Stroke: 35.0 oz. Pull @ 3/8 In. Stroke: 20.0 oz. Pull @ 5/8 In. Stroke: 5.0 oz. Width: 2-1/16" Pull @ 1 In. Stroke: 1.0 oz. Length: 2-1/2" Pull @ 3/4 In. Stroke: 3.0 oz. Depth: 2-1/16" Coil Resistance: 14.9 ohm Country of Origin (subject to change): United States | Dayton 4x241
Dormeyer 2536-M-1 Solenoid Laminated 1/8 - 1 In Continuous
Description:
Current @ maximum stroke 6.50 Amps, coil resistance 14.9 Ohms, coil voltage rating @ 60 HZ 120 VAC, seated current 0.48 Amps, seated power 19 Watts, mounting holes on center length 2 inch mounting holes on center width 1 5/8 inch, length 2 1/2 inch, depth 2 1/16 inch, width 2 1/16 inch. Grainger Part 4X241, Dormeyer 2536-M-1, Coil Volts 120VAC
Solenoid Type: Laminated Item: Solenoid Duty Cycle: Continuous Stroke Range: 1/8" to 1" Pull Force Range: 92.8 to 176.0 oz. Coil Volts: 120VAC Seated Amps: 0.48 Seated Watts: 19.0 Terminals: Solder Lug Coil Amps @ Max. Stroke: 6.50 Mounting Holes: 2 x 1-5/8" Gravity Value: 5.92 oz. Pull @ 1/2 In. Stroke: 13.0 oz. Pull @ 1/8 In. Stroke: 65.0 oz. | Pull @ 1/4 In. Stroke: 35.0 oz. Pull @ 3/8 In. Stroke: 20.0 oz. Pull @ 5/8 In. Stroke: 5.0 oz. Width: 2-1/16" Pull @ 1 In. Stroke: 1.0 oz. Length: 2-1/2" Pull @ 3/4 In. Stroke: 3.0 oz. Depth: 2-1/16" Coil Resistance: 14.9 ohm Country of Origin (subject to change): United States | Dayton 4x241
