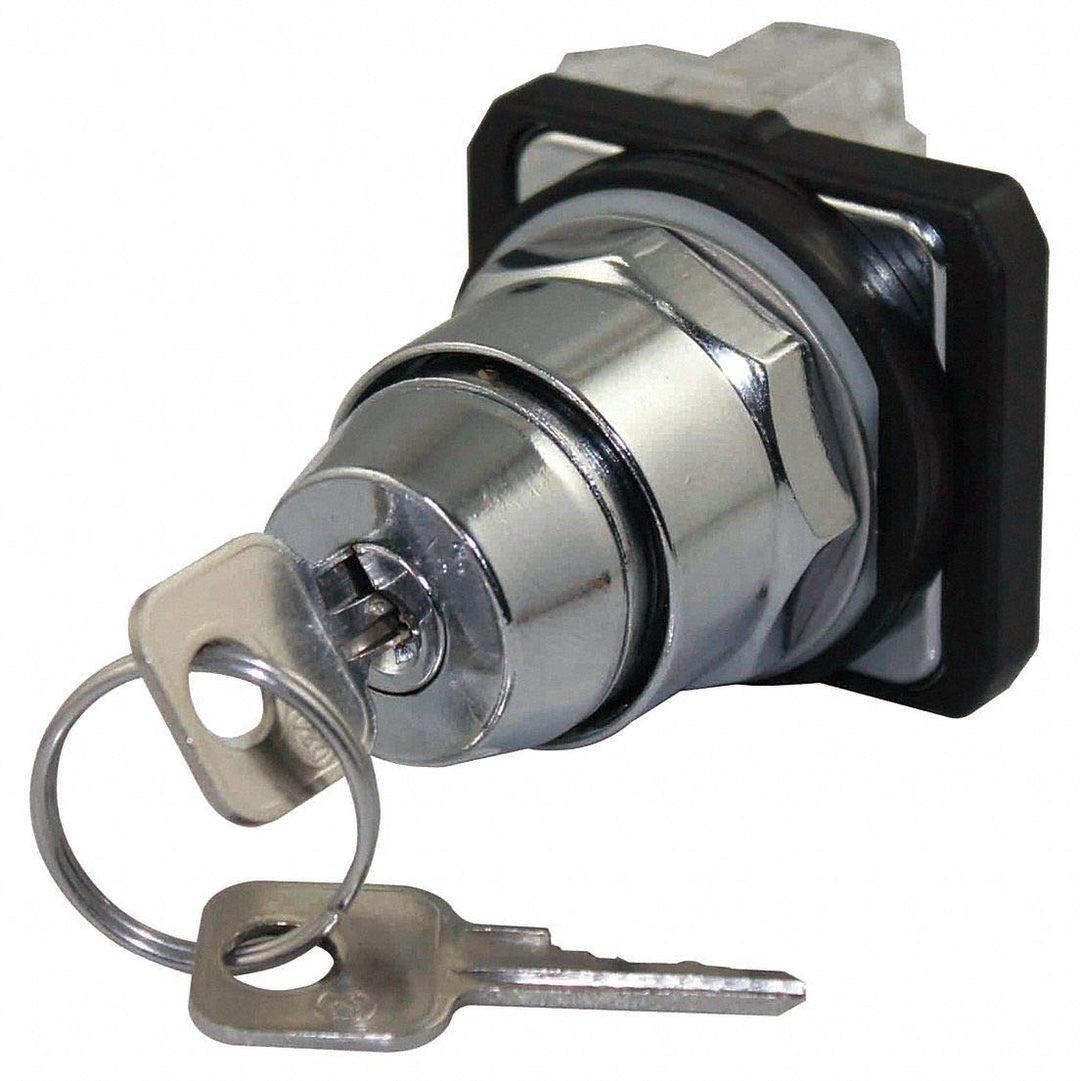

Dayton Non-Illuminated Selector Switch Size: 30mm Position: 2 Action:

Item Name:
Dayton Non-Illuminated Selector Switch Size: 30mm Position: 2 Action: Maintained/Maintained

Description:
This non-illuminated selector switch is engineered to protect against corrosion and the ingress of solid foreign objects such as falling dirt, circulating dust, settling dust, lint, fibers, and flyings. It also offers protection against the ingress of water from dripping, splashing, and hosedowns. The switch also resists corrosive agents, spraying or seepage of oil and coolants, and damage from the external formation of ice on the enclosure.

Item: Non-Illuminated Selector Switch
Size: 30mm
Position: 2
Action: Maintained / Maintained
Contact Form: 1NO/1NC
Type of Operator: Keyed
Color: Chrome
Key Removal: Left
Operator Head Material: Plastic
Basic Material: Metal
Bezel Material: Zinc Die Cast
Bezel Color: Silver
Contact Rating: 10A @ 600VAC, 2.5A @ 600DC
NEMA Contact Rating Designation: A600/Q600
NEMA Rating: 4, 13
IP Rating: 65
Cam: E
Switch Operation @ Position A: XO
Switch Operation @ Position B: OX
Switch Operation @ Position C: No Third Position
Switch Operation @ Position D: No Fourth Position
Standards: UL Listed, CSA Certified, CE Marked
Includes: Key
